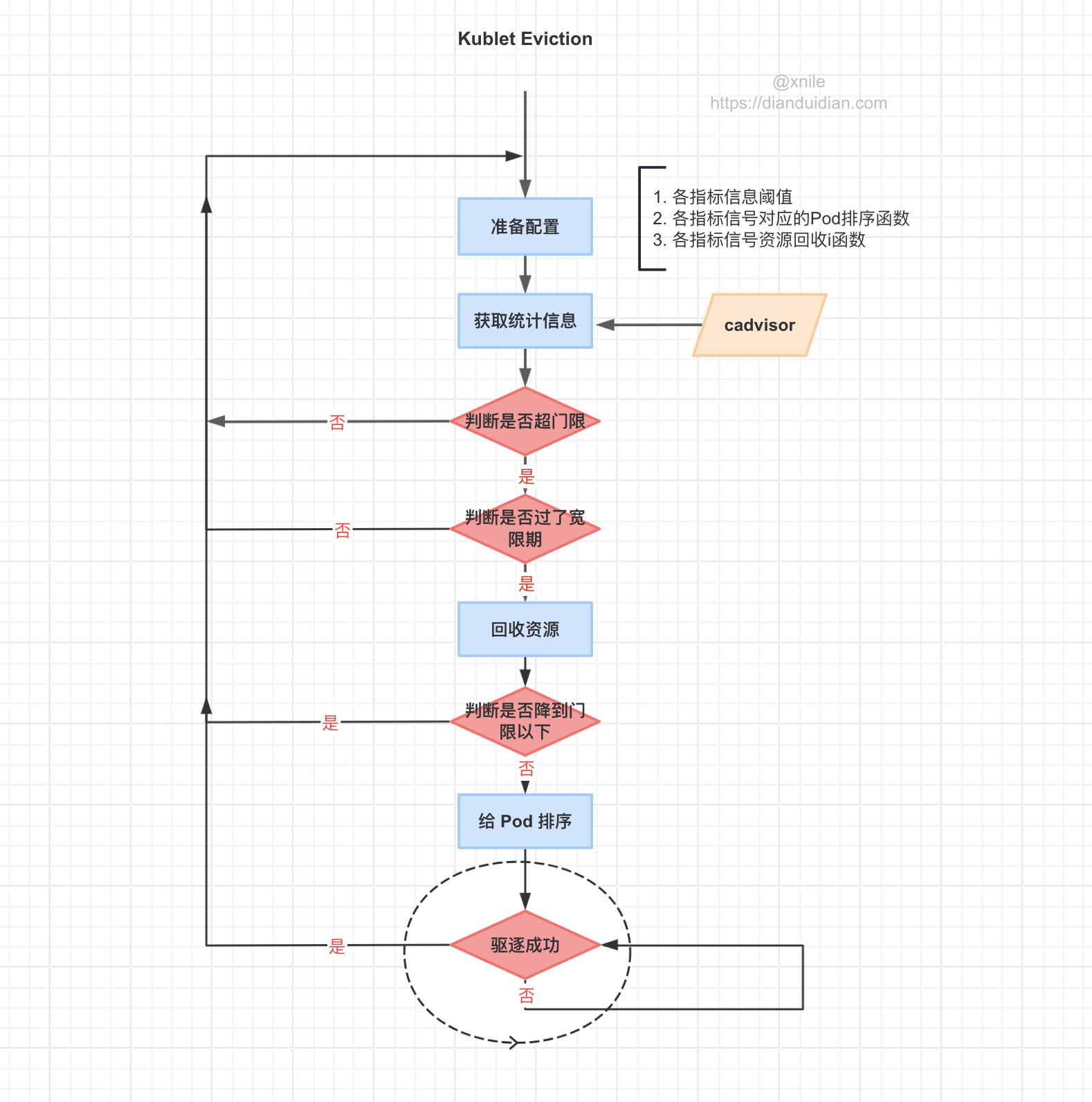

Kubernetes Eviction 驱逐机制分析

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218

// synchronize is the main control loop that enforces eviction thresholds.
// Returns the pod that was killed, or nil if no pod was killed.
func (m *managerImpl) synchronize(diskInfoProvider DiskInfoProvider, podFunc ActivePodsFunc) []*v1.Pod {
	ctx := context.Background()
	// 各种指标阈值，由kubelet 启动时指定，包括soft 和 hard 门限
	// if we have nothing to do, just return
	thresholds := m.config.Thresholds
	if len(thresholds) == 0 && !m.localStorageCapacityIsolation {
		return nil
	}

	klog.V(3).InfoS("Eviction manager: synchronize housekeeping")
	// build the ranking functions (if not yet known)
	// TODO: have a function in cadvisor that lets us know if global housekeeping has completed
	if m.dedicatedImageFs == nil {  // 是否有独立 imageFs 磁盘
		hasImageFs, ok := diskInfoProvider.HasDedicatedImageFs(ctx)
		if ok != nil {
			return nil
		}
		m.dedicatedImageFs = &hasImageFs
		// 准备当超门限时，signals 需要给 Pod 排序的函数， 先驱逐谁后驱逐谁就是这么来的
		m.signalToRankFunc = buildSignalToRankFunc(hasImageFs)
		// 为支持回收的资源（主要是磁盘资源）关联回收函数，用于后边需要回收资源时调用
		m.signalToNodeReclaimFuncs = buildSignalToNodeReclaimFuncs(m.imageGC, m.containerGC, hasImageFs)
	}

	// 获取节点上当前 active 的 Pod
	activePods := podFunc()
	updateStats := true

	// 统计节点各种资源使用情况，默认来源 cadvisor
	summary, err := m.summaryProvider.Get(ctx, updateStats)
	if err != nil {
		klog.ErrorS(err, "Eviction manager: failed to get summary stats")
		return nil
	}

	// notifierRefreshInterval memcg 通知间隔时间，为10s，避免频繁
	if m.clock.Since(m.thresholdsLastUpdated) > notifierRefreshInterval {
		m.thresholdsLastUpdated = m.clock.Now()
		for _, notifier := range m.thresholdNotifiers {
			//  使用 Cgroups Notification API 更新内存资源使用情况，实时性会高一些
			if err := notifier.UpdateThreshold(summary); err != nil {
				klog.InfoS("Eviction manager: failed to update notifier", "notifier", notifier.Description(), "err", err)
			}
		}
	}

	// 根据上边获取到的各种资源使用情况组装成 signalObservations 方便后边使用
	// statsFunc 主要是用来返回指定 Pod 的资源使用情况
	// make observations and get a function to derive pod usage stats relative to those observations.
	observations, statsFunc := makeSignalObservations(summary)
	debugLogObservations("observations", observations)

	// 将观察到的资源使用情况同阈值比较找出超门限的
	// determine the set of thresholds met independent of grace period
	thresholds = thresholdsMet(thresholds, observations, false)
	debugLogThresholdsWithObservation("thresholds - ignoring grace period", thresholds, observations)

	// determine the set of thresholds previously met that have not yet satisfied the associated min-reclaim
	if len(m.thresholdsMet) > 0 { // 对于上一次 loop 时筛选出来的超限资源，这次还要考虑 --eviction-minimum-reclaim
		thresholdsNotYetResolved := thresholdsMet(m.thresholdsMet, observations, true)
		thresholds = mergeThresholds(thresholds, thresholdsNotYetResolved) // 没达到最小回收要求的也加入超限列表
	}
	debugLogThresholdsWithObservation("thresholds - reclaim not satisfied", thresholds, observations)

	// track when a threshold was first observed
	now := m.clock.Now()
	// 确定已经超限列表中的 thresholds 它们的首次观察到超限开始时间
	thresholdsFirstObservedAt := thresholdsFirstObservedAt(thresholds, m.thresholdsFirstObservedAt, now)

	// 根据当前超限情况准备 node conditions ，用于更新 node status
	// the set of node conditions that are triggered by currently observed thresholds
	nodeConditions := nodeConditions(thresholds)
	if len(nodeConditions) > 0 {
		klog.V(3).InfoS("Eviction manager: node conditions - observed", "nodeCondition", nodeConditions)
	}

	// 确定各 NodeConditionType 上一次观察的时间，目的用于下边判断是否满足 config.PressureTransitionPeriod
	// track when a node condition was last observed
	nodeConditionsLastObservedAt := nodeConditionsLastObservedAt(nodeConditions, m.nodeConditionsLastObservedAt, now)

	// m.config.PressureTransitionPeriod 为 --eviction-pressure-transition-period 指定的值，
	// 该标志控制kubelet在将节点条件转换为不同状态之前必须等待的时间，避免节点 condition 震荡
	// node conditions report true if it has been observed within the transition period window
	nodeConditions = nodeConditionsObservedSince(nodeConditionsLastObservedAt, m.config.PressureTransitionPeriod, now)
	if len(nodeConditions) > 0 {
		klog.V(3).InfoS("Eviction manager: node conditions - transition period not met", "nodeCondition", nodeConditions)
	}

	// 筛选出超限且持续了 grace periods 的 thresholds，对于软驱逐由 --eviction-soft-grace-period 指定，硬驱逐为0
	// determine the set of thresholds we need to drive eviction behavior (i.e. all grace periods are met)
	thresholds = thresholdsMetGracePeriod(thresholdsFirstObservedAt, now)
	debugLogThresholdsWithObservation("thresholds - grace periods satisfied", thresholds, observations)

	// update internal state
	m.Lock()
	m.nodeConditions = nodeConditions
	m.thresholdsFirstObservedAt = thresholdsFirstObservedAt
	m.nodeConditionsLastObservedAt = nodeConditionsLastObservedAt
	m.thresholdsMet = thresholds

	// 由于各种资源的使用情况并不是实事更新的，也是定时轮训获取的，所以可能会出现上次 loop 已经驱逐过一个 Pod，但是这
	// 次 loop 由于时资源统计还没更新，观察判断仍然超限，这样是不准确的，因为忽略掉。
	// thresholdsUpdatedStats 的作用就是去除掉这些资源状态末刷新的超限。
	// determine the set of thresholds whose stats have been updated since the last sync
	thresholds = thresholdsUpdatedStats(thresholds, observations, m.lastObservations)
	debugLogThresholdsWithObservation("thresholds - updated stats", thresholds, observations)

	m.lastObservations = observations  // 将本次观察到的超限列表存起来，用于下一次运行时比较
	m.Unlock()

	// 本地临时存储容量隔离 特性
	// evict pods if there is a resource usage violation from local volume temporary storage
	// If eviction happens in localStorageEviction function, skip the rest of eviction action
	if m.localStorageCapacityIsolation {
		if evictedPods := m.localStorageEviction(activePods, statsFunc); len(evictedPods) > 0 {
			return evictedPods
		}
	}

	if len(thresholds) == 0 {
		klog.V(3).InfoS("Eviction manager: no resources are starved")
		return nil
	}

	// Signals 背后对应内存，磁盘，inode，pids 各种资源，它们分可压缩资源和不可压缩资源，可压缩资源是可以回收的，
	// 所以需要给它们排个序，后边会按这个顺序回收资源，内存会排在其它资源前。
	// 为什么内存会排在最前边呢，明明它是不可回收资源啊，下边又最先选择它回收，乍一看矛盾了。
	// 其实这里逻辑比较巧妙，正因为内存是不可压缩资源，当它超限后，应该赶紧驱逐，相反如果把其它可压缩的资源放在前边
	// 先回收它们骚操作一通内存可是一点也没减，耽误了时间可正事是一点也没干。
	// 它这样把内存放到最前边，表面是资源回收是先走它，但是因为它不支持回收，没有回收函数，会很快略过，
	// 逻辑值得学习。
	// rank the thresholds by eviction priority
	sort.Sort(byEvictionPriority(thresholds))
	// 排好序后筛选出一种指标资源准备回收
	thresholdToReclaim, resourceToReclaim, foundAny := getReclaimableThreshold(thresholds)
	if !foundAny {
		return nil
	}
	klog.InfoS("Eviction manager: attempting to reclaim", "resourceName", resourceToReclaim)

	// 事件记录
	// record an event about the resources we are now attempting to reclaim via eviction
	m.recorder.Eventf(m.nodeRef, v1.EventTypeWarning, "EvictionThresholdMet", "Attempting to reclaim %s", resourceToReclaim)

	// 开始回收节点资源，如果回收完资源降到门限以下，则函数直接返回，表示资源已经不再饥饿，已经不需要驱逐了
	// check if there are node-level resources we can reclaim to reduce pressure before evicting end-user pods.
	if m.reclaimNodeLevelResources(ctx, thresholdToReclaim.Signal, resourceToReclaim) {
		klog.InfoS("Eviction manager: able to reduce resource pressure without evicting pods.", "resourceName", resourceToReclaim)
		return nil
	}

	klog.InfoS("Eviction manager: must evict pod(s) to reclaim", "resourceName", resourceToReclaim)

	// 回收完仍然不能避免饥饿,先准备驱逐了。
	// 这里准备给回收过仍不能避免饥饿的资源选取 Pod 的排序函数
	// rank the pods for eviction
	rank, ok := m.signalToRankFunc[thresholdToReclaim.Signal]
	if !ok {
		klog.ErrorS(nil, "Eviction manager: no ranking function for signal", "threshold", thresholdToReclaim.Signal)
		return nil
	}

	// 没有可供驱逐的 Pod 直接返回进入下一次轮询
	// the only candidates viable for eviction are those pods that had anything running.
	if len(activePods) == 0 {
		klog.ErrorS(nil, "Eviction manager: eviction thresholds have been met, but no pods are active to evict")
		return nil
	}

	//  给 Pod 排序，后边按这个顺序遍历选择 Pod 驱逐
	// rank the running pods for eviction for the specified resource
	rank(activePods, statsFunc)

	klog.InfoS("Eviction manager: pods ranked for eviction", "pods", klog.KObjSlice(activePods))

	//record age of metrics for met thresholds that we are using for evictions.
	for _, t := range thresholds {
		timeObserved := observations[t.Signal].time
		if !timeObserved.IsZero() {
			metrics.EvictionStatsAge.WithLabelValues(string(t.Signal)).Observe(metrics.SinceInSeconds(timeObserved.Time))
		}
	}

	// we kill at most a single pod during each eviction interval
	for i := range activePods {
		pod := activePods[i]
		// 硬驱逐 优雅退出为0
		gracePeriodOverride := int64(0)
		if !isHardEvictionThreshold(thresholdToReclaim) {
			// 软驱逐 则会使用 eviction-max-pod-grace-period 配置的值，默认为 0
			gracePeriodOverride = m.config.MaxPodGracePeriodSeconds
		}
		// 准备 Pod Condition
		message, annotations := evictionMessage(resourceToReclaim, pod, statsFunc, thresholds, observations)
		var condition *v1.PodCondition
		if utilfeature.DefaultFeatureGate.Enabled(features.PodDisruptionConditions) {
			condition = &v1.PodCondition{
				Type:    v1.DisruptionTarget,
				Status:  v1.ConditionTrue,
				Reason:  v1.PodReasonTerminationByKubelet,
				Message: message,
			}
		}
		// 驱逐 Pod，如果 Pod 成功驱逐则 return 返回，进入下一轮询过程，即每次 loop 最多只驱逐一个 Pod
		// 为什么每次只驱逐一个 Pod 呢？背后的考量让人暖心，做到尽可能的少 kill, 虽然每次驱逐一个 Pod 可能资源降不到门限
		// 以下，大不了再 loop 一次。还有就是每个超限的 threshold 都是独立的，内存我只看内存超限，但一个Pod占用的资源并不是单一的，
		// 内存，磁盘都会占用，当我因为内存超门限驱逐它以后，硬盘占用也会减少，这时应该重新 observation 资源使用情况，而不能静态的使
		// 用已经 observation 过的资源使用情况。总结就是: 驱逐 -> 观察 -> 驱逐 -> ...
		if m.evictPod(pod, gracePeriodOverride, message, annotations, condition) {
			metrics.Evictions.WithLabelValues(string(thresholdToReclaim.Signal)).Inc()
			return []*v1.Pod{pod}
		}
	}
	klog.InfoS("Eviction manager: unable to evict any pods from the node")
	return nil
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25

// buildSignalToRankFunc returns ranking functions associated with resources
func buildSignalToRankFunc(withImageFs bool) map[evictionapi.Signal]rankFunc {
	signalToRankFunc := map[evictionapi.Signal]rankFunc{
		evictionapi.SignalMemoryAvailable:            rankMemoryPressure,
		evictionapi.SignalAllocatableMemoryAvailable: rankMemoryPressure,
		evictionapi.SignalPIDAvailable:               rankPIDPressure,
	}
	// usage of an imagefs is optional
	if withImageFs {
		// with an imagefs, nodefs pod rank func for eviction only includes logs and local volumes
		signalToRankFunc[evictionapi.SignalNodeFsAvailable] = rankDiskPressureFunc([]fsStatsType{fsStatsLogs, fsStatsLocalVolumeSource}, v1.ResourceEphemeralStorage)
		signalToRankFunc[evictionapi.SignalNodeFsInodesFree] = rankDiskPressureFunc([]fsStatsType{fsStatsLogs, fsStatsLocalVolumeSource}, resourceInodes)
		// with an imagefs, imagefs pod rank func for eviction only includes rootfs
		signalToRankFunc[evictionapi.SignalImageFsAvailable] = rankDiskPressureFunc([]fsStatsType{fsStatsRoot}, v1.ResourceEphemeralStorage)
		signalToRankFunc[evictionapi.SignalImageFsInodesFree] = rankDiskPressureFunc([]fsStatsType{fsStatsRoot}, resourceInodes)
	} else {
		// without an imagefs, nodefs pod rank func for eviction looks at all fs stats.
		// since imagefs and nodefs share a common device, they share common ranking functions.
		signalToRankFunc[evictionapi.SignalNodeFsAvailable] = rankDiskPressureFunc([]fsStatsType{fsStatsRoot, fsStatsLogs, fsStatsLocalVolumeSource}, v1.ResourceEphemeralStorage)
		signalToRankFunc[evictionapi.SignalNodeFsInodesFree] = rankDiskPressureFunc([]fsStatsType{fsStatsRoot, fsStatsLogs, fsStatsLocalVolumeSource}, resourceInodes)
		signalToRankFunc[evictionapi.SignalImageFsAvailable] = rankDiskPressureFunc([]fsStatsType{fsStatsRoot, fsStatsLogs, fsStatsLocalVolumeSource}, v1.ResourceEphemeralStorage)
		signalToRankFunc[evictionapi.SignalImageFsInodesFree] = rankDiskPressureFunc([]fsStatsType{fsStatsRoot, fsStatsLogs, fsStatsLocalVolumeSource}, resourceInodes)
	}
	return signalToRankFunc
}

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

// rankMemoryPressure orders the input pods for eviction in response to memory pressure.
// It ranks by whether or not the pod's usage exceeds its requests, then by priority, and
// finally by memory usage above requests.
func rankMemoryPressure(pods []*v1.Pod, stats statsFunc) {
	orderedBy(exceedMemoryRequests(stats), priority, memory(stats)).Sort(pods)
}

// rankPIDPressure orders the input pods by priority in response to PID pressure.
func rankPIDPressure(pods []*v1.Pod, stats statsFunc) {
	orderedBy(priority, process(stats)).Sort(pods)
}

// rankDiskPressureFunc returns a rankFunc that measures the specified fs stats.
func rankDiskPressureFunc(fsStatsToMeasure []fsStatsType, diskResource v1.ResourceName) rankFunc {
	return func(pods []*v1.Pod, stats statsFunc) {
		orderedBy(exceedDiskRequests(stats, fsStatsToMeasure, diskResource), priority, disk(stats, fsStatsToMeasure, diskResource)).Sort(pods)
	}
}
